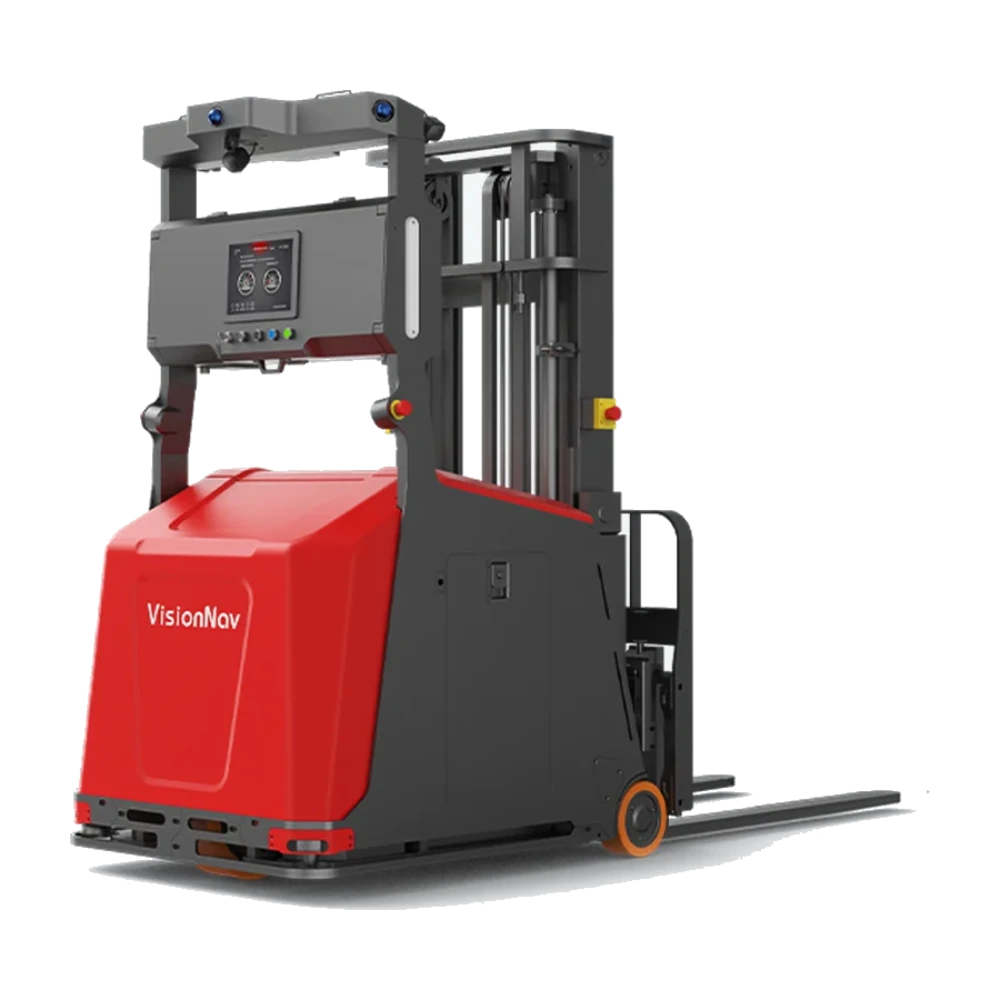

VisionNav VNP 15
Autonomous Counterbalance Stacker
VisionNav Robotics manufactures the VNP 15 as an Autonomous Counterbalance Stacker. The published payload of the VNP 15 is 1,500 kg. The VNP 15 navigates with 3D SLAM. MAG has not deployed the VNP 15.
What are the key figures?
- Payload
- 1,500 kg
- Top speed
- 1.5 m/s
- Lift height
- 3,000 mm
- Navigation
- 3D SLAM
- Minimum aisle
- 1,424 mm
What are the full specifications?
| Type | Autonomous Counterbalance Stacker |
|---|---|
| Payload | 1,500 kg |
| Lift height | 3,000 mm |
| Lift height options | 3,500, 4,000, 4,500 mm |
| Top speed | 1.5 m/s |
| Turning radius | 1,490 mm |
| Minimum aisle | 1,424 mm |
| Navigation | 3D SLAM |
| Positioning accuracy | 20 mm |
| Charge strategy | manual, automatic |
| Environment | indoor |
| Jobs | Move pallets |
Stacking accuracy plus or minus 20 mm. Minimum turning aisle 3,300 mm. Rated capacity derates with taller masts, attachments or longer loads, and the published performance figures assume the standard 3,000 mm duplex mast.
Specifications reflect a standard configuration and are subject to change by the manufacturer. Optional masts, attachments, batteries, and navigation modes can change rated capacity and performance. MAG confirms as-configured specifications during site assessment.
When were these specifications verified?
Specifications verified 1 October 2026.
Which machines are closest to the VNP 15?
How the VNP 15 is commissioned
The VNP 15 is matched to the plant, installed with the fleet, and supported after launch.
