AMRs and AGVs for Manufacturing
Autonomous mobile robots, autonomous forklifts and tow units for automotive and industrial plants. Filter by payload, navigation method or the action.
In focus
VNP 15
Autonomous Counterbalance Stacker
- Payload
- 1,500 kg
- Top speed
- 1.5 m/s
- Navigation
- 3D SLAM
A 1,500 kg counterbalance stacker that handles pallet putaway and ground to rack transport using 3D SLAM, with no tape or reflectors required.
VisionNav VNP 15 specifications- Autonomous Counterbalance StackerVNP 15Payload: 1,500 kgTop speed: 1.5 m/sNavigation: 3D SLAMA 1,500 kg counterbalance stacker that handles pallet putaway and ground to rack transport using 3D SLAM, with no tape or reflectors required.
Autonomous Slim ForkliftVNSL 14Payload: 1,400 kgTop speed: 1.3 m/sNavigation: 3D SLAMA 1,400 kg slim forklift built for 1.8 m aisles, with one-key switching between manual and automatic operation.
Platform AMRVNK 15Payload: 1,500 kgTop speed: 1.8 m/sNavigation: Not publishedA low-profile 1,500 kg platform AMR for top-lift handling, rated by VisionNav for continuous operation at low temperature.
Mobile Robot PlatformKMP 1500P diffDrivePayload: 1,500 kgTop speed: 1.8 m/sNavigation: SLAM, QR codeA 1,500 kg differential-drive AMR platform that reads floor QR codes for plus or minus 5 mm positioning and charges inductively for continuous operation.
Mobile Robot PlatformKMP 600P diffDrivePayload: 600 kgTop speed: Not publishedNavigation: SLAM, QR codeA compact 600 kg AMR platform for tight production areas, switchable between SLAM and floor QR navigation, with inductive charging for 24/7 running.
Autonomous Mobile RobotOTTO 100Payload: 150 kgTop speed: 2 m/sNavigation: 2D SLAMA 150 kg AMR that turns in place and fits a 1,099 mm one-way aisle, built for kit and small parts delivery between stations.
Safety Lifting RobotSLR-1000EUPayload: 1,000 kgTop speed: 1.5 m/sNavigation: Laser SLAMA 1,000 kg underdrive AMR that drives beneath a cart or rack and lifts it, using laser SLAM with no reflectors and a 1,092 mm minimum aisle.

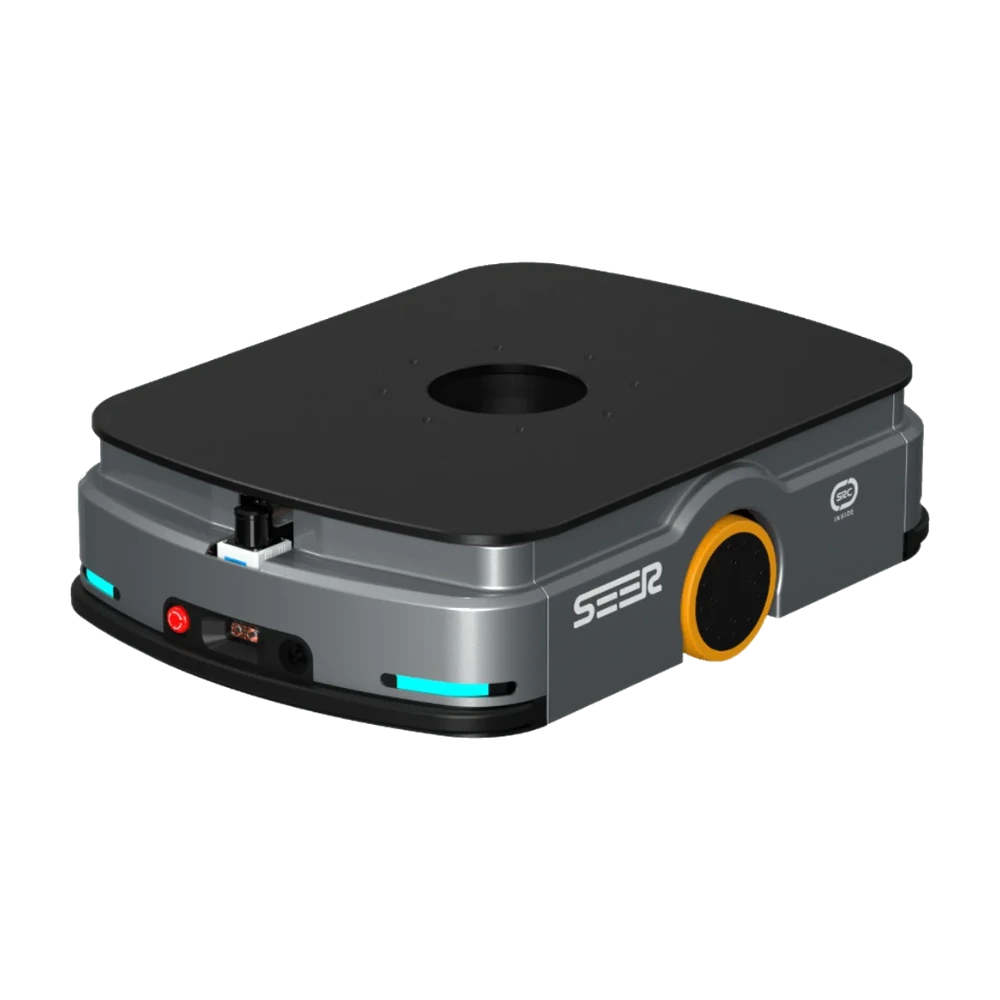

Rotary Lifting RobotSJV-SW600Payload: 600 kgTop speed: 1.5 m/sNavigation: Laser SLAM, QR code, ReflectorA 600 kg rotary jacking AMR whose lift plate turns independently of the chassis, so a load keeps its orientation down a 790 mm aisle.

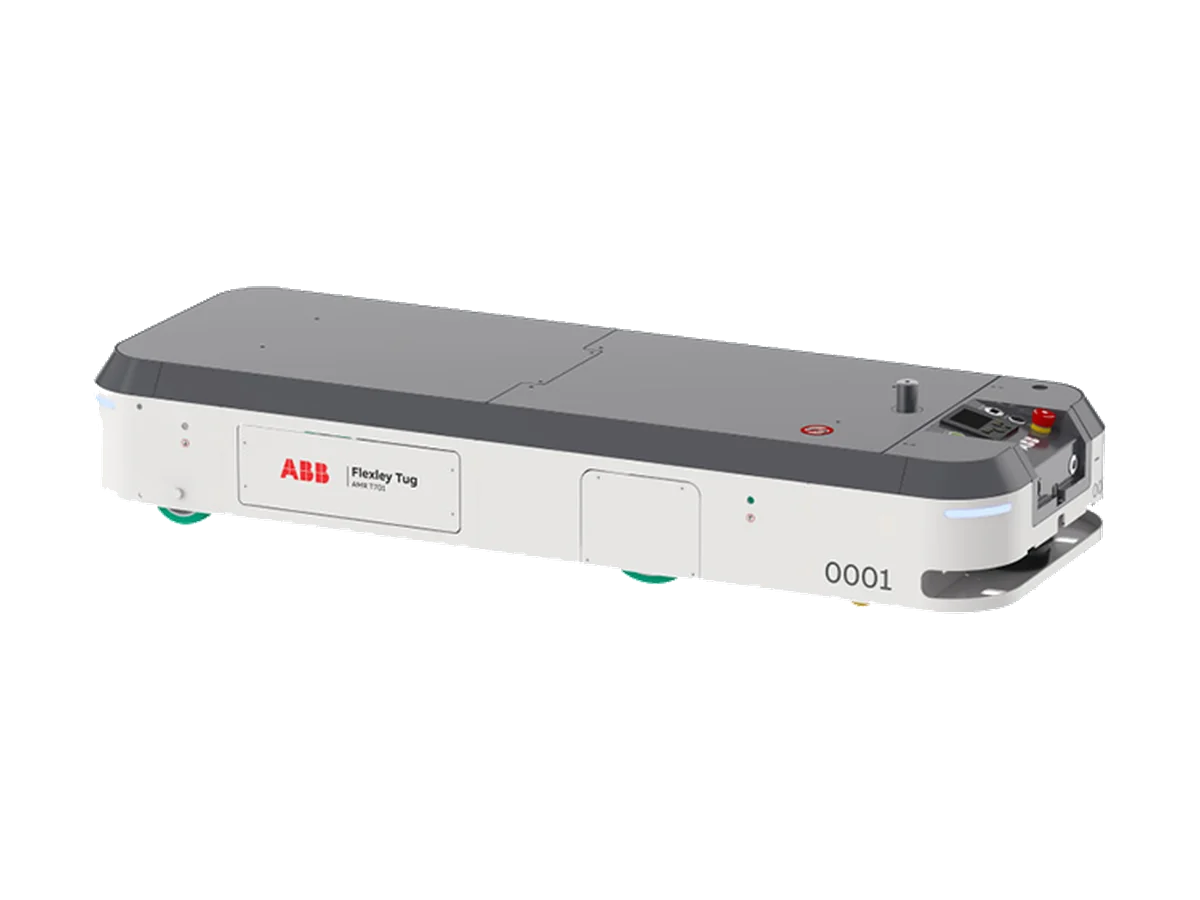

Tunnel and Tow AMRFlexley Tug AMR T702Payload: 2,000 kgTop speed: 1.5 m/sNavigation: Magnetic tape, RFID tagsA bidirectional tow and tunnel unit rated to 2,000 kg on magnetic navigation, dropping to 1,000 kg when run on natural SLAM.

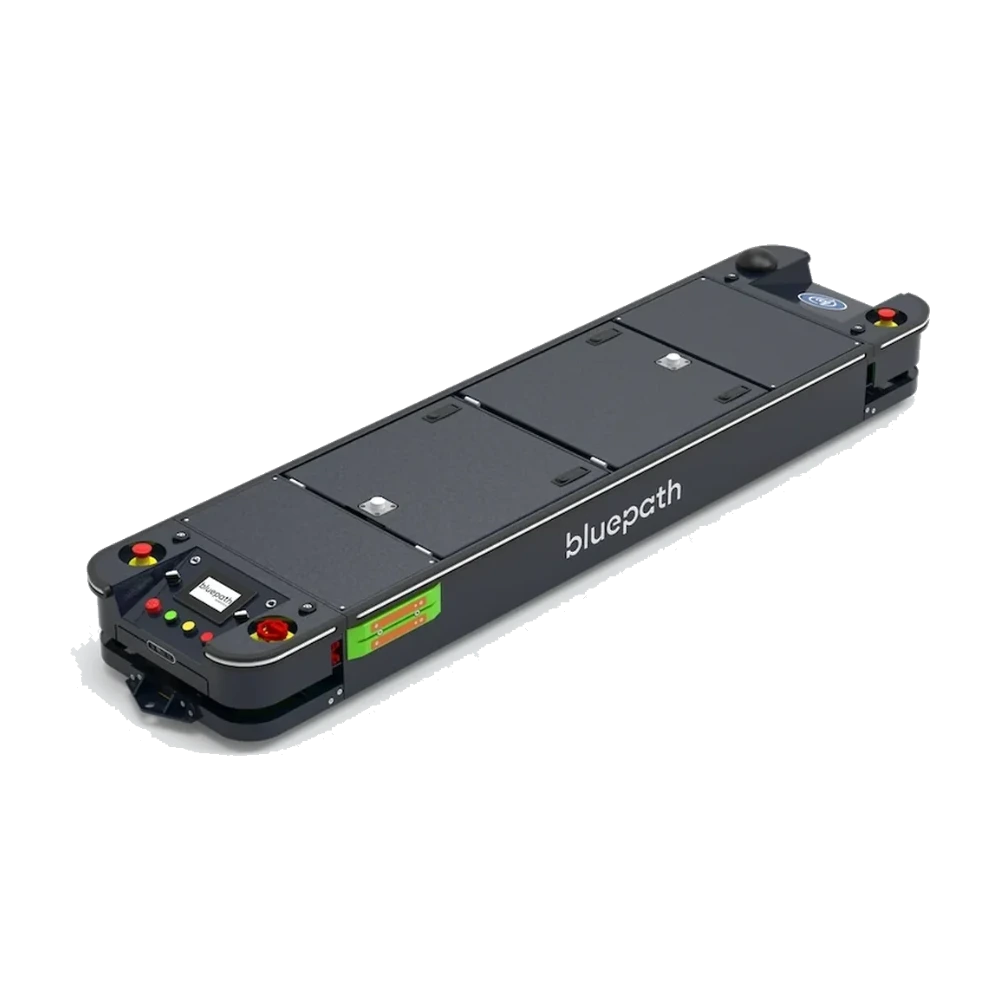

Tunnel and Tow AMRMouse/Tunnel HighPayload: 1,000 kgTop speed: 1.5 m/sNavigation: Natural feature, Line trackingA 1,000 kg omnidirectional tunnel AMR with bidirectional pin engagement, running hybrid natural navigation and line tracking.

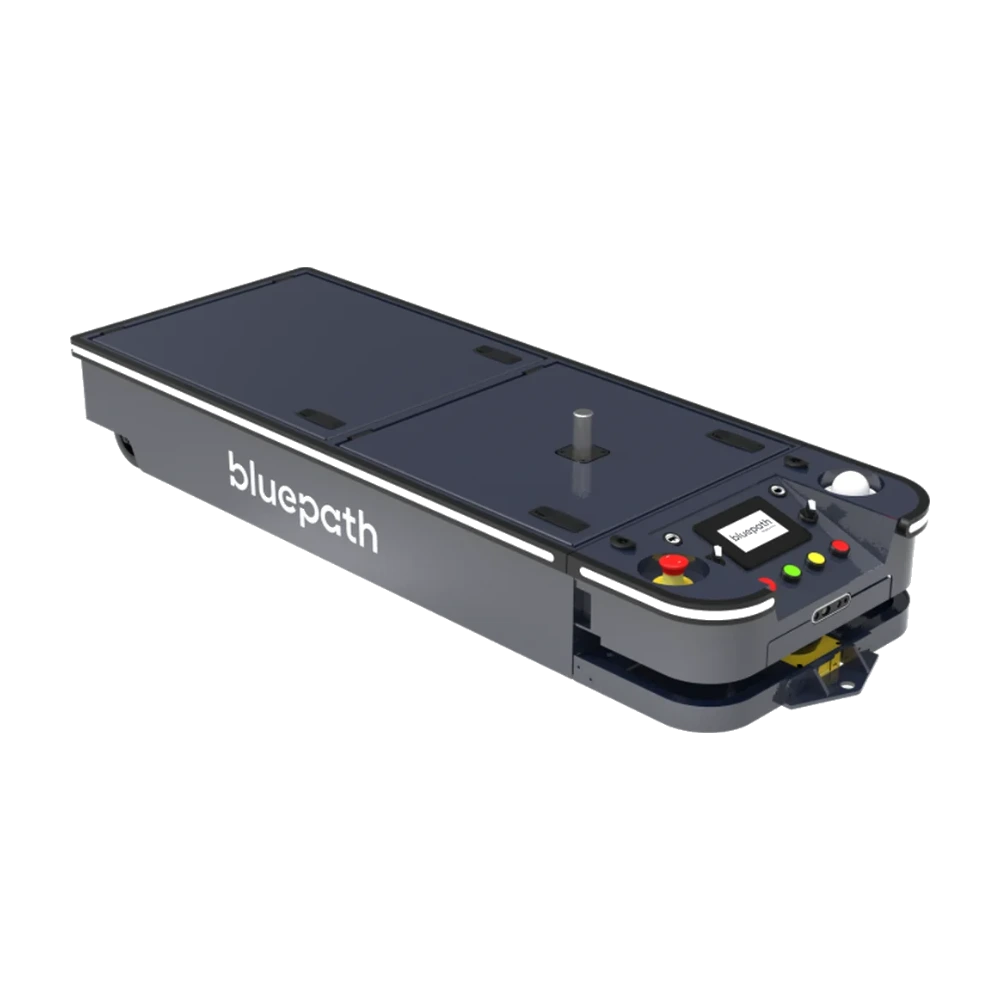

Tunnel and Tow AMRMouse/Tunnel LowPayload: 500 kgTop speed: 1.5 m/sNavigation: Visual SLAM, Laser SLAM, Line trackingA 500 kg tunnel AMR only 230 mm tall, built to run beneath racks and fixed-height structures that other tow units cannot clear.

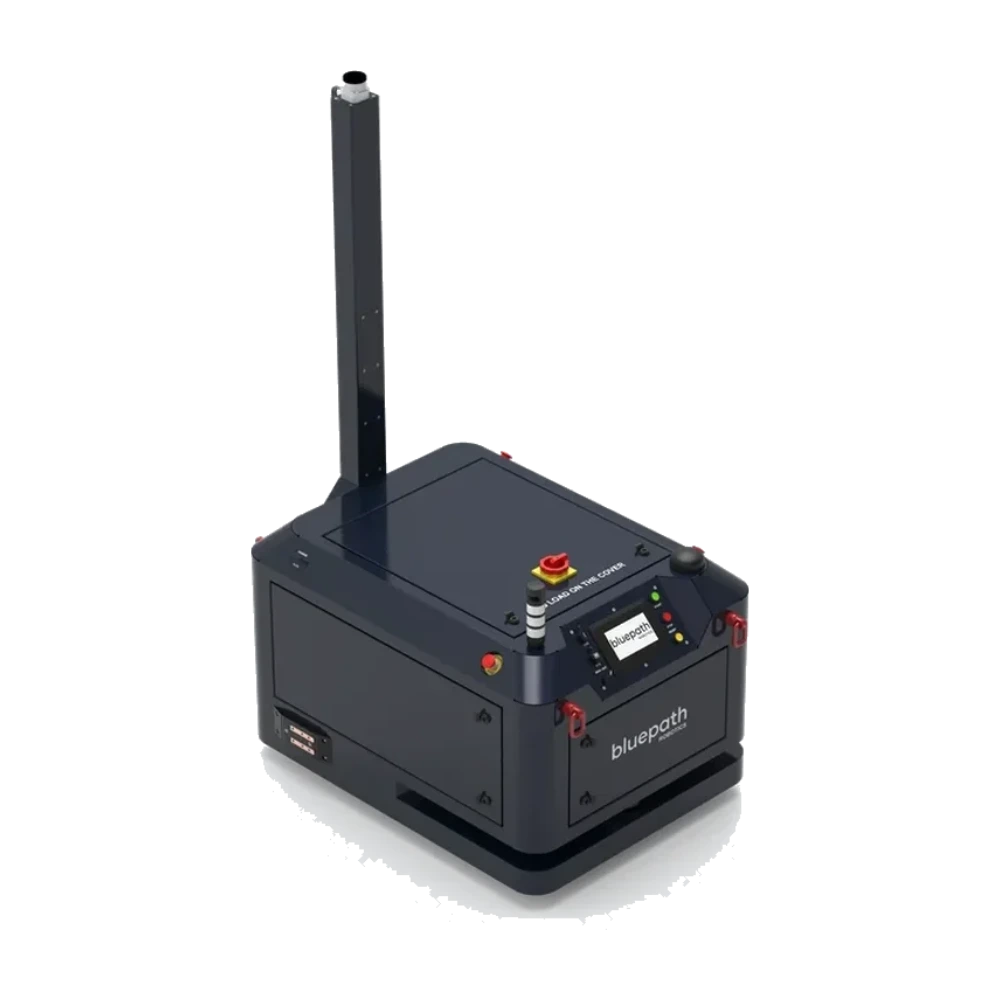

Tow AMRTugger Medium 4000Payload: 4,000 kgTop speed: 1.5 m/sNavigation: Natural feature, Line trackingA 4,000 kg towing AMR for bulk dolly transfer along distribution corridors, the heaviest towing unit in the catalog.

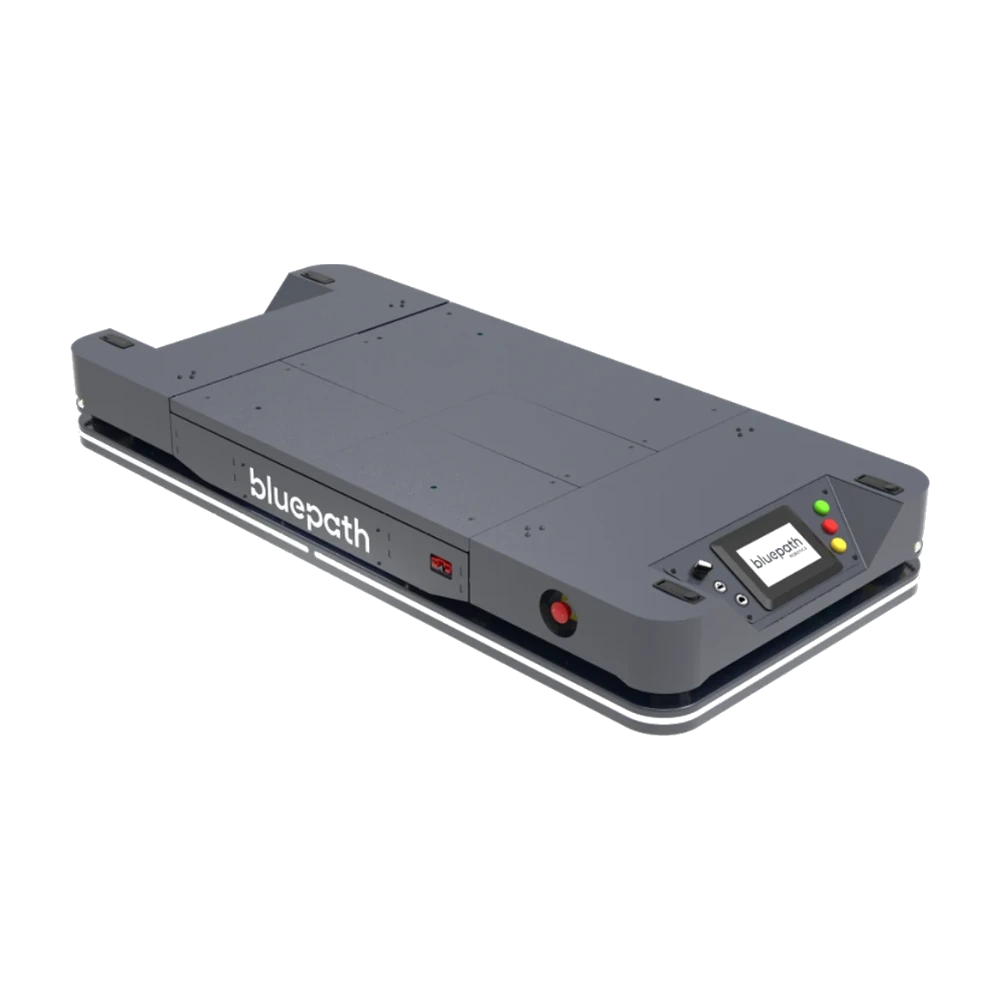

Underdrive AMRUnderdrive OmnidirectionalPayload: 1,000 kgTop speed: 1.5 m/sNavigation: Visual SLAM, Laser SLAM, Line trackingA 1,000 kg omnidirectional underdrive AMR for pallet and rack transport in space-constrained layouts, running visual and laser SLAM.

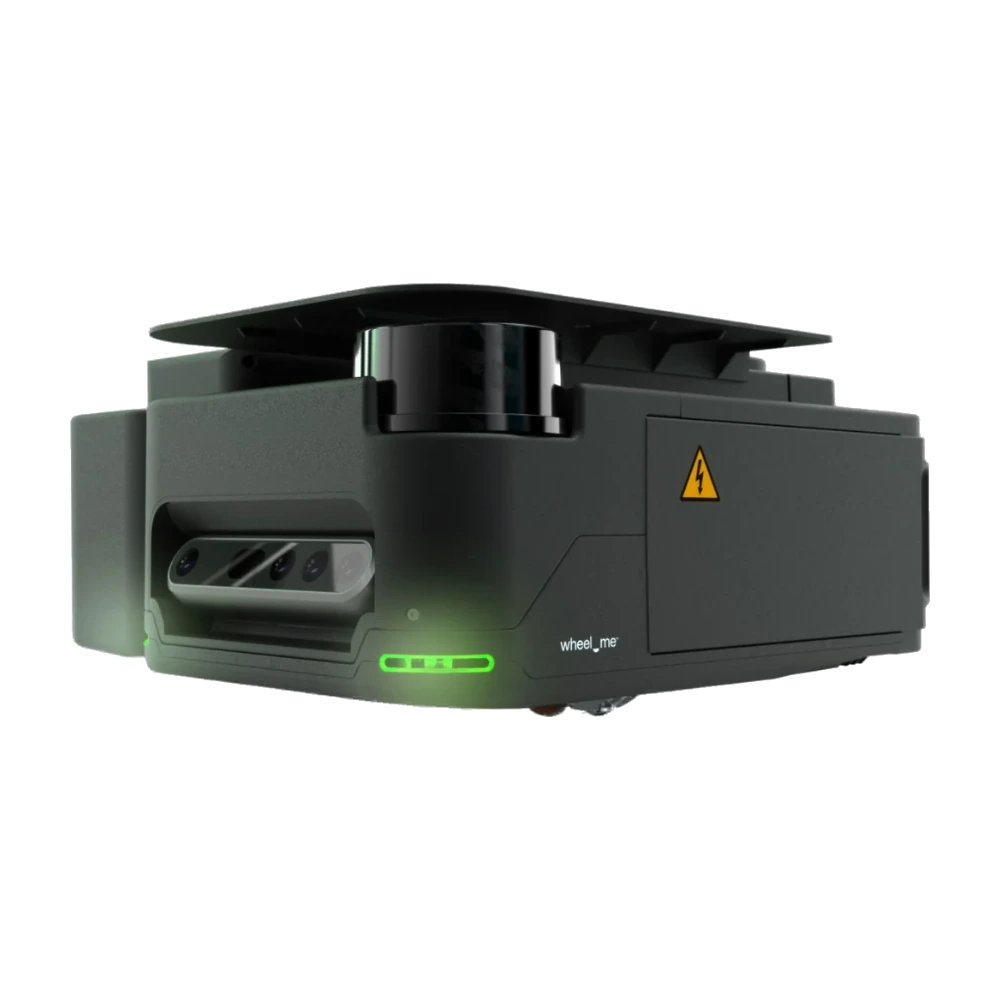

Autonomous Wheel SystemGenius 2Payload: 250 kgTop speed: Not publishedNavigation: Laser SLAM, Visual SLAMA set of four autonomous drive wheels that converts an existing cart, rack or trolley into a mobile robot, sold as a service rather than a capital purchase.Coming Soon
Specification table
| Machine | Type | Payload | Navigation | Top speed | Minimum aisle |
|---|---|---|---|---|---|
| VNP 15 | Autonomous Counterbalance Stacker | 1,500 kg | 3D SLAM | 1.5 m/s | 1,424 mm |
| VNSL 14 | Autonomous Slim Forklift | 1,400 kg | 3D SLAM | 1.3 m/s | 2,250 mm |
| VNK 15 | Platform AMR | 1,500 kg | Not published | 1.8 m/s | Not published |
| KMP 1500P diffDrive | Mobile Robot Platform | 1,500 kg | SLAM, QR code | 1.8 m/s | Not published |
| KMP 600P diffDrive | Mobile Robot Platform | 600 kg | SLAM, QR code | Not published | Not published |
| OTTO 100 | Autonomous Mobile Robot | 150 kg | 2D SLAM | 2 m/s | 1,099 mm |
| SLR-1000EU | Safety Lifting Robot | 1,000 kg | Laser SLAM | 1.5 m/s | 1,092 mm |
| SJV-SW600 | Rotary Lifting Robot | 600 kg | Laser SLAM, QR code, Reflector | 1.5 m/s | 790 mm |
| Flexley Tug AMR T702 | Tunnel and Tow AMR | 2,000 kg | Magnetic tape, RFID tags | 1.5 m/s | Not published |
| Mouse/Tunnel High | Tunnel and Tow AMR | 1,000 kg | Natural feature, Line tracking | 1.5 m/s | Not published |
| Mouse/Tunnel Low | Tunnel and Tow AMR | 500 kg | Visual SLAM, Laser SLAM, Line tracking | 1.5 m/s | Not published |
| Tugger Medium 4000 | Tow AMR | 4,000 kg | Natural feature, Line tracking | 1.5 m/s | Not published |
| Underdrive Omnidirectional | Underdrive AMR | 1,000 kg | Visual SLAM, Laser SLAM, Line tracking | 1.5 m/s | Not published |
| Genius 2 | Autonomous Wheel System | 250 kg | Laser SLAM, Visual SLAM | Not published | Not published |
The fleet, matched to the plant
The machine is matched to the plant, the fleet is installed, and support continues after launch.
